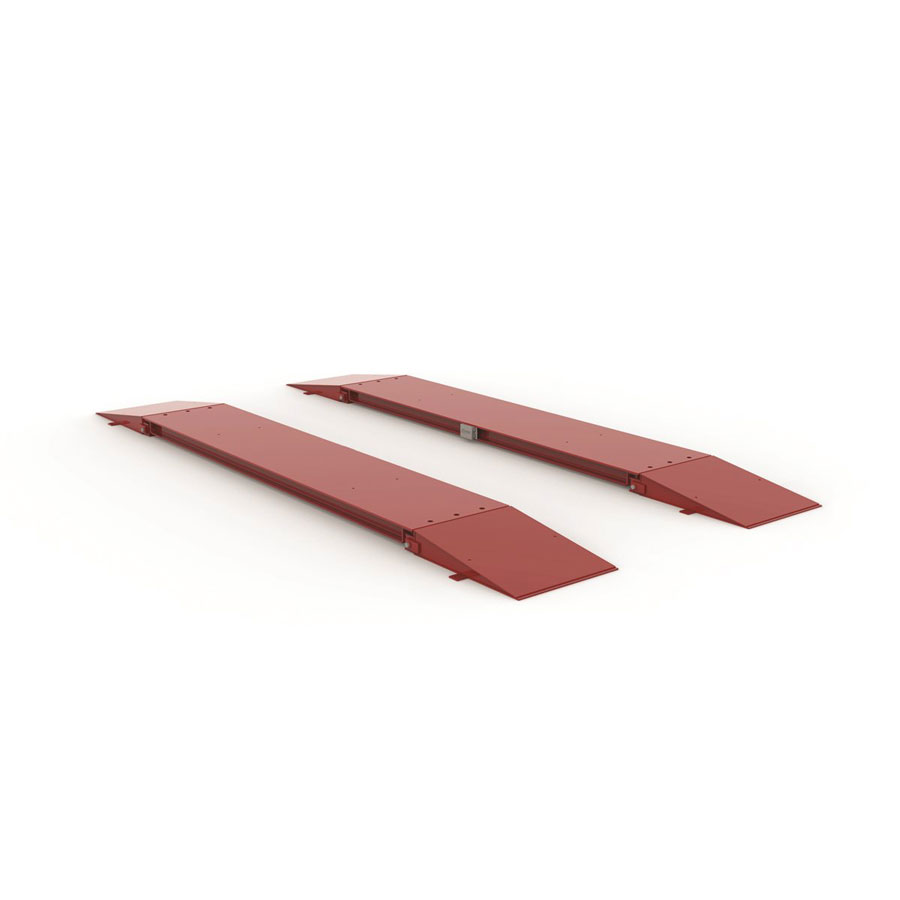

AX200 Axle Scale with Ramps
Click to rotate this product
https://www.b-tek.com.b-tekserver.com/products/vehicle-scales/axle-scales/ax200-axle-scale
Share this product beyond Facebook and Twitter!
Product Code:
911-5602-KIT

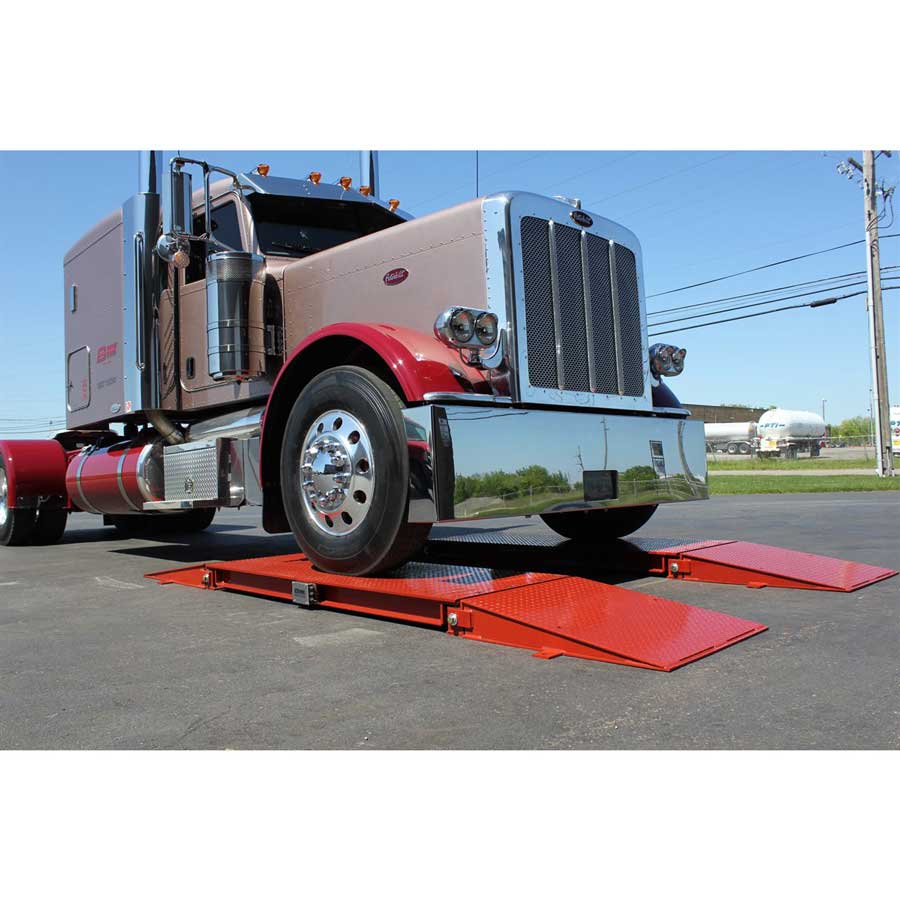

The B-TEK AX200 Axle Scale provides dependable axle weight readings in a rugged, low-profile design. Built for portability and durability, the AX200 helps reduce overweight fines and improve payload efficiency while offering an economical alternative to a full-size truck scale. The package includes (2) scale platforms and (4) ramps.
- No Foundation Required – Installs directly on concrete, asphalt or well-compacted gravel
- Removable Ramps - Easily drive on and off the scale platforms
- Low-Profile Design – 6-inch height allows easy vehicle drive-on and portability
- ½-Inch Tread Plate Decking – Thickest decking in the industry for exceptional durability
- Superior Platform Construction – Built with I-beams for maximum strength and stability
- Stainless Steel Junction Box – Provides strong protection for wire terminations
- Durable Paint System – Two-component epoxy finish protects against corrosion
Details
Engineered for versatile, heavy-duty performance, the AX200 Axle Scale package is designed to measure individual vehicle axle weights accurately. By identifying over- or under-loaded axles, the AX200 helps prevent fines and optimize each load for maximum productivity.
The system features two rigidly mounted load cells per platform with no moving suspension parts to wear, bend or break. Constructed with structural I-beams and ½-inch tread plate decking—the thickest in the industry—the AX200 delivers lasting durability in demanding weighing environments. Its portable, 6-inch-tall design installs easily on concrete, asphalt or well-compacted gravel without the need for a foundation.
Available in four standard platform lengths and custom sizes, the AX200 adapts to both new and existing sites.
Specifications
- COC: Non-NTEP
- 60k lb Capacity (30k per platform)
- AX200 scale is an economical alternative to a full-size truck scale
- Platform can be moved with fork lift
- Scale height of only 6” - very low profile for ease during drive-on
- No concrete or foundation construction required for installation

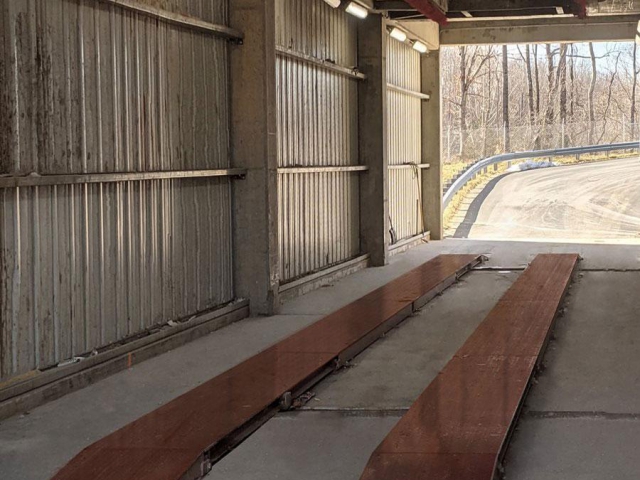

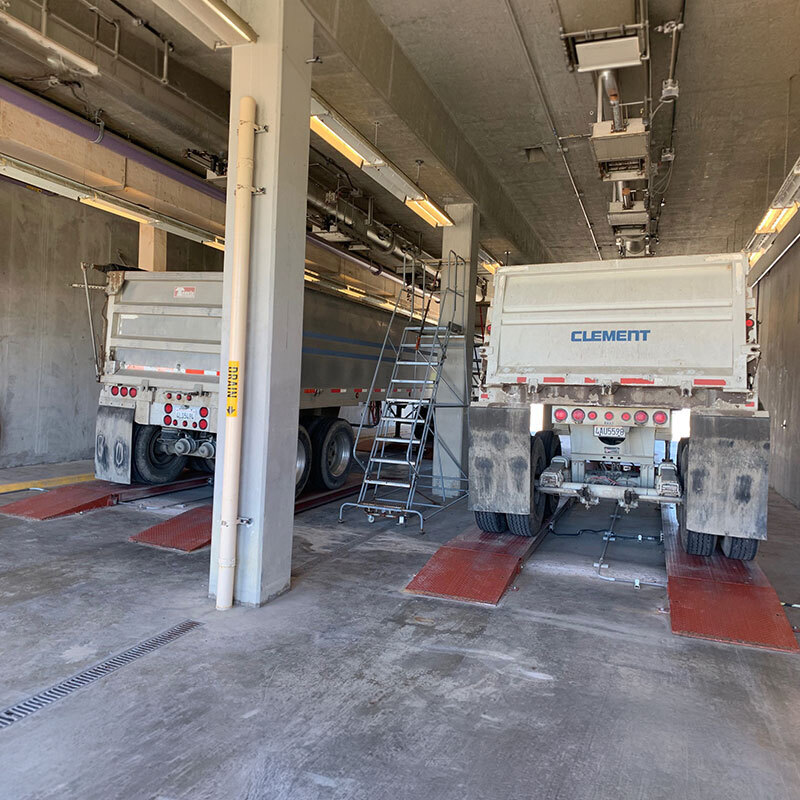

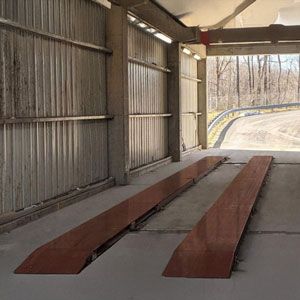

- Installs on top of concrete, asphalt, well-compacted gravel, or flush with grade
- Platform constructed with I-beams for superior strength
- Platform has 1/2” tread plate decking for ultimate durability
- Platform steel is shot blast cleaned (SSPC-SP6) prior to painting
- Platform and ramps have locations for attachment of lifting eyes
- (4) Ramps have fully-plated bottom support and lag-down tabs
- Stainless steel junction box on the platform to protect wire terminations
- Interconnect cables available
- Two-component polyamide epoxy paint system
Loading...
Loading Resources ...
Options & Accessories
Loading...
Loading Options & Accessories ...
Frequently Asked Questions
- 1-Year weighbridge warranty covering defects in materials and workmanship
- 1-Year load cell warranty covering defects in materials and workmanship
