DD700 Indicator
The DD700 is a versatile industrial weighing indicator designed for analog or digital scale systems. It combines straightforward operation with built-in diagnostics, flexible data management and multiple communication options for truck weighing, floor scales and process applications. Multiple enclosure configurations are available for general industrial, panel-mount and washdown environments.
- Analog And Digital Load Cell Compatibility – Supports up to 12 analog 350-ohm load cells or up to 12 digital load cells for flexible system configuration
- Backlit Graphic LCD Display – Provides clear weight readings, menu navigation and application information
- Preloaded Weighing Applications – Includes single weighing and truck in/truck out software for common industrial and vehicle weighing applications
- Built-In Diagnostics – Provides detailed diagnostic information to help technicians identify weighing system issues and simplify troubleshooting
- Flexible Data Management – Stores up to 15,000 trucks, products or customers and allows transaction data to be exported through USB flash memory
- Expandable Communications – Includes serial, USB and digital I/O connections plus two option card slots for additional networking and control capabilities
Details
The DD700 is a flexible industrial weighing indicator designed to support a wide range of weighing applications without unnecessary complexity. It works with analog or digital load cells and includes standard single weighing and truck in/truck out applications. A backlit graphic LCD provides clear weight readings, menus and application information, while built-in diagnostics help simplify troubleshooting and service. The DD700 can store up to 15,000 trucks, products or customers and supports USB data export for convenient recordkeeping. Optional software and communication hardware expand the indicator for counting, check weighing, batching, totalization, multi-operator applications and industrial network integration. Multiple enclosure configurations are available to suit desktop, panel-mount, industrial and washdown installations.

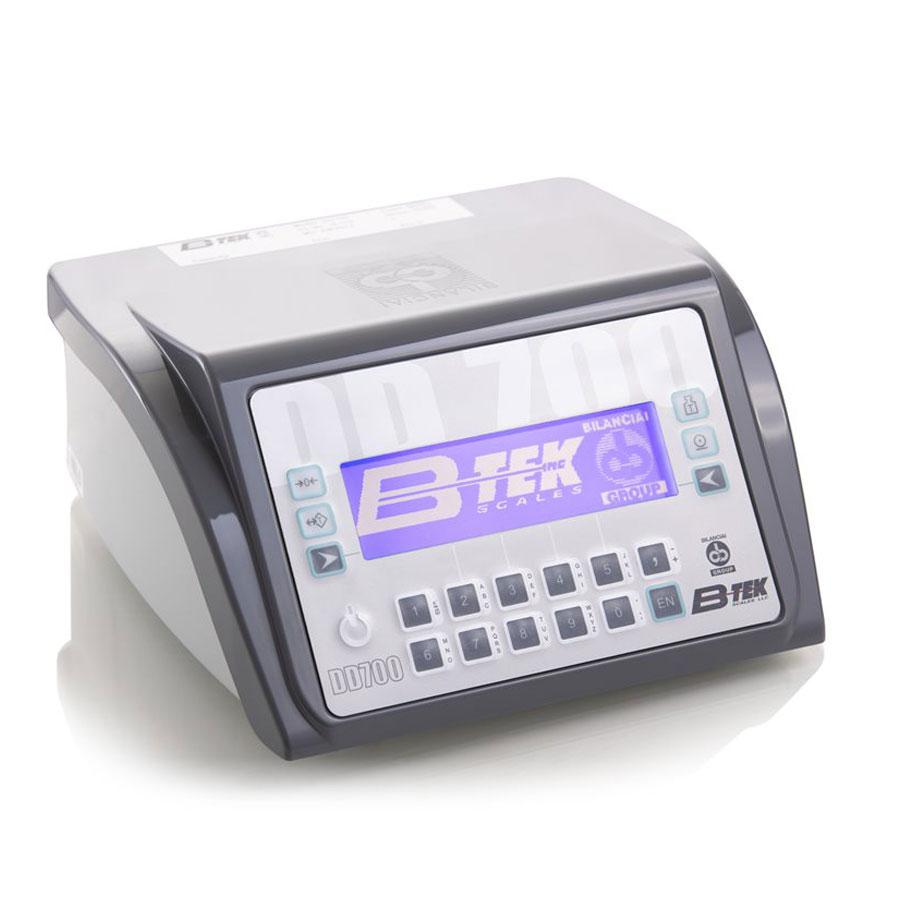

DD700 - Molded ABS desktop enclosure for general industrial weighing applications\
- Desktop configuration
- Approximate dimensions: 9.84" W x 4.72" H x 9.13" D
- IP20 enclosure
DD700ic - Stainless steel industrial enclosure for applications requiring a more durable housing
- Stainless steel construction
- Desktop or wall-mount configuration
- IP65 front panel
- IP20 enclosure
- Approximate width: 11.02"
DD700i - Stainless steel washdown enclosure for demanding industrial environments
- Stainless steel construction
- IP69K enclosure rating
- Designed for applications requiring increased protection against water and dust
- Approximate dimensions: 11.02" W x 10.43" H x 5.31" D
DD700PM - Stainless steel panel-mount configuration for integration into control cabinets and industrial equipment
- Panel-mount design
- IP65 front panel
- IP20 enclosure
Specifications
- NTEP COC: 15-113
- CANADA: AM-6012

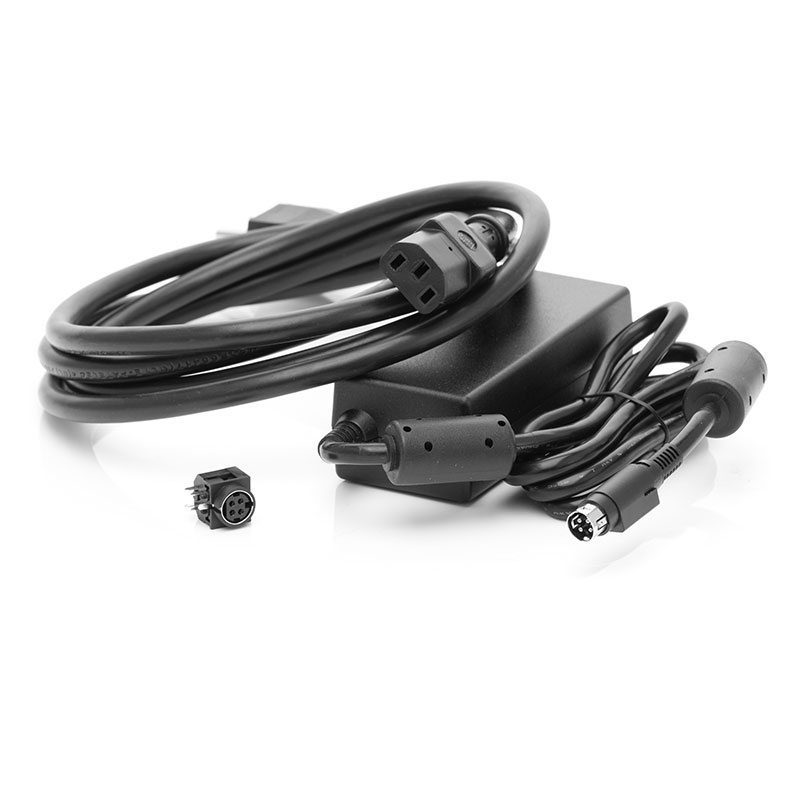

- Power Supply UL Approved E209833 & E183223
- Desktop mount molded ABS plastic enclosure / Swivel bracket and wall mount bracket with stainless steel enclosure (IP69K) rating
- High visibility backlit LCD full graphic display, 15mm Digit height (Optional 30mm Single weighing mode)
- Membrane keypad with 18-keys
- Customizable ticket formats with time and date
- Extensive built-in diagnostic screens
- Export transaction data to USB flash memory
- Store up to 15,000 trucks / products / customers in memory
- Up to (12) 350 ohm Analog Cells
- Up to (12) Digital Cells

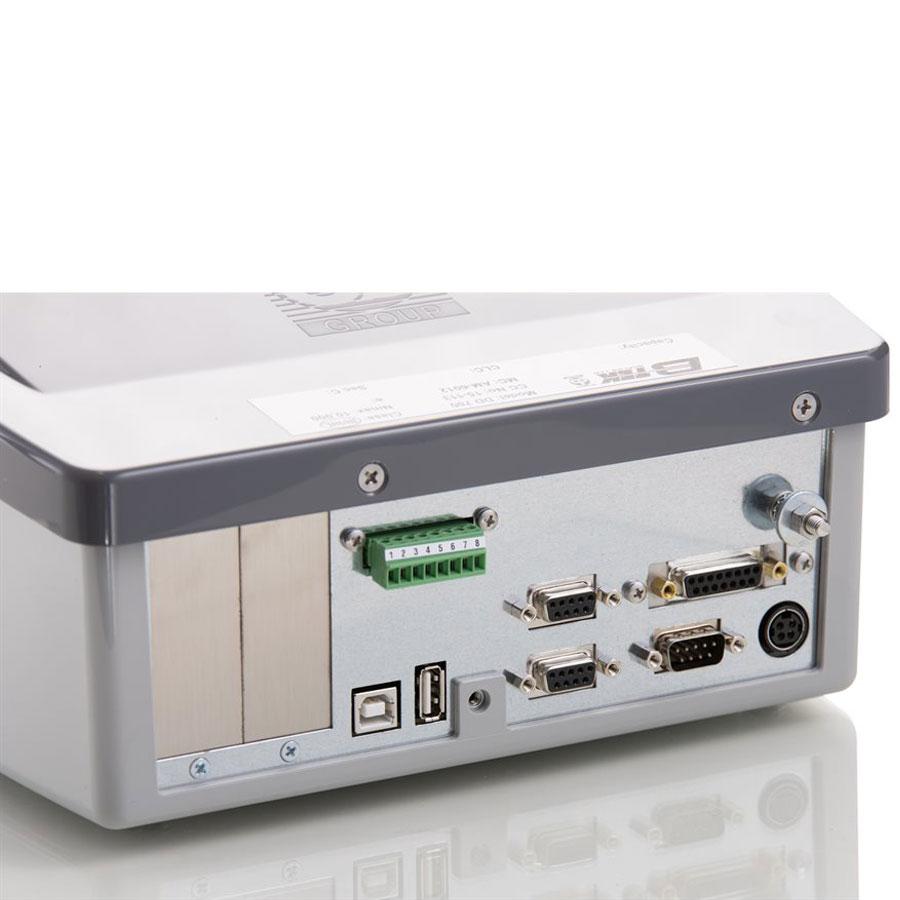

- (2) “Plug & Play” option card slots
- (1) USB host (Type A) port for updates, backup, archiving and keyboard
- (1) USB serial (Type B) device port
- (2) Isolated dry contact inputs
- (2) Relay outputs (24v max)
- (1) RS-232 serial port
- (1) RS-232 / RS-422 / RS-485 configurable port
- Six built-in language choices
- Local / Remote Indicator via RS232, RS422, or TCP/IP Ethernet Converter
- Applications: Single Weighing, Double Weighing, Counting, Totalization, Multi - Operator, Batching, Check Weighing
IP Rating
- IP20
- IP69K
